HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Brand Name : ZANE

Model Number : KK Series Module

Certification : CE，ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs per month

Delivery Time : Three days at the soonest after order confirmation

Packaging Details : Standard export carton packing, wooden case, foam board inside for protection

Product name : linear module

Weight(KG) : 10

Material : Bearing steel

Stocks : large

Core Components : Core Components

Application : Automatic System

Performance : Long Working Life

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Contact Now

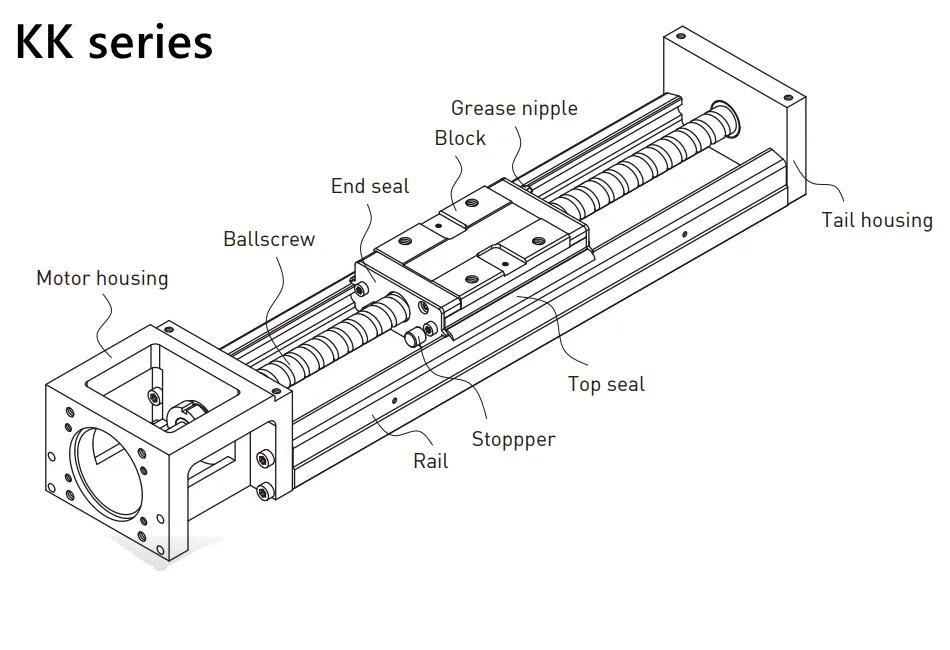

HIWIN Replacement Single Axis Robot KK Linear Module KK40 KK50 KK60 KK86 KK100 KK130



Product Paramenters



Product Name
KK Single Axis Robot
Material
Aluminum, Aluminum+Stainless steel
Feature
An integrated system,Easy installation and maintenance,Compact and lightweightHigh accuracy,High stiffness,Complete
MOQ
1 pc
Service
OEM/ODM
Application
Industrial automation fields such as chip mount equipment, laser cutting equipment, spray equipment



HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130



The Linear Module KK Series Parameter list

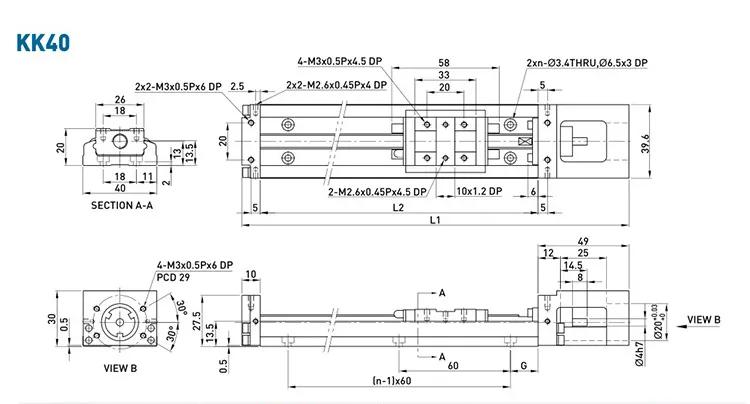

HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130



Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) n Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
100 159 36 - 20 2 0.48 -
150 209 86 34 15 3 0.6 0.67
200 259 136 84 40 3 0.72 0.79

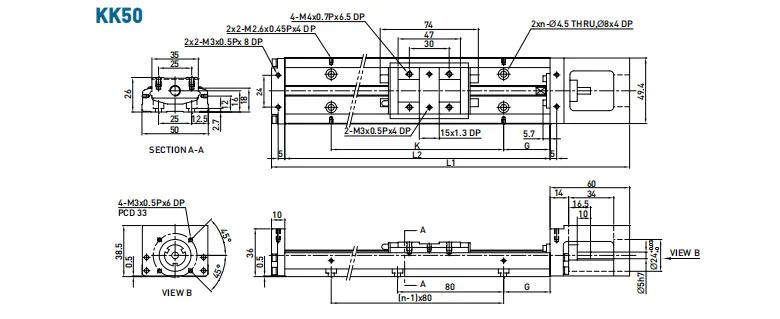

HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) K(mm) n Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
150 220 70 - 35 80 2 1 -
200 270 120 55 20 160 3 1.2 1.4
250 320 170 105 45 160 3 1.4 1.6
300 370 220 155 30 240 4 1.6 1.8

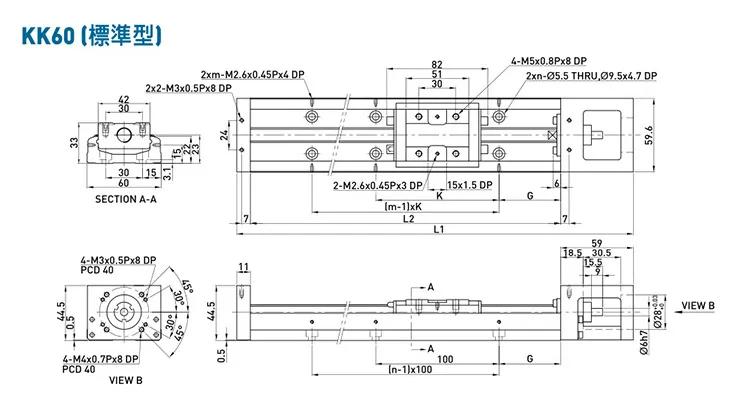

HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) K(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
150 220 60 - 25 100 2 2 1.4 -
200 270 110 - 50 100 2 2 1.7 -
300 370 210 135 50 200 3 2 2.3 2.6
400 470 310 235 50 100 4 4 3.2 3.2
500 570 410 335 50 200 5 3 3.5 3.8
600 670 510 435 50 100 6 6 4.1 4.5

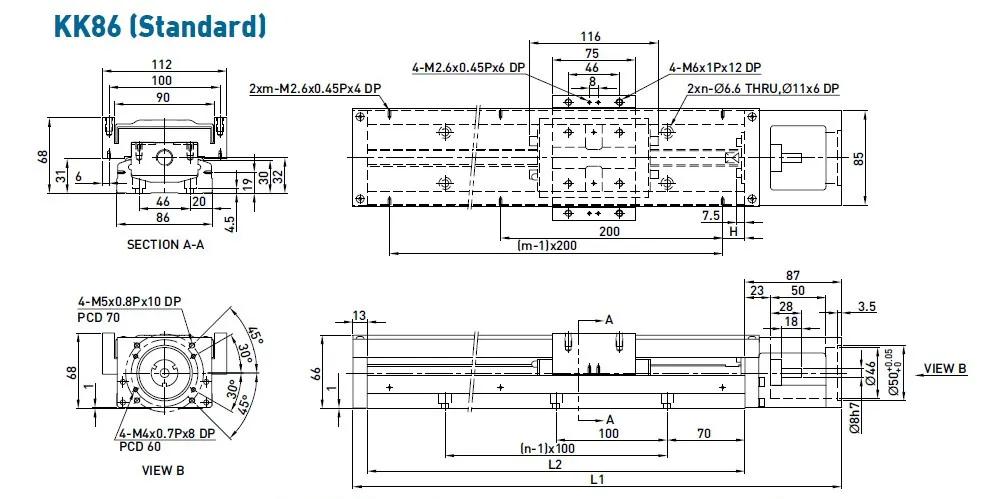

HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) H(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
340 440 210 100 70 3 2 5.7 6.5
440 540 310 200 20 5 3 6.9 7.7
540 640 410 300 70 5 3 8.0 8.8
640 740 510 400 20 7 4 9.2 10.0
740 840 610 500 70 7 4 10.4 11.2
940 1040 810 700 70 9 5 11.6 12.4

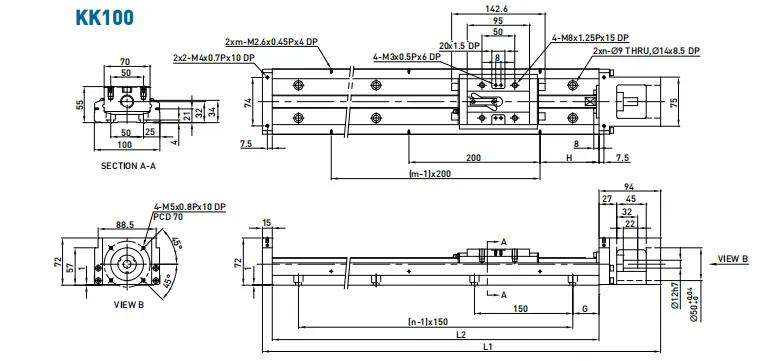

HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) H(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
980 1089 828 700 40 90 7 5 18.6 20.3
1080 1189 928 800 15 40 8 6 20.3 22.0
1180 1289 1028 900 65 90 8 6 22.0 23.7
1280 1389 1128 1000 40 40 9 7 23.6 25.3
1380 1489 1228 1100 15 90 10 7 25.3 27.0



HIWIN Replacement Single Axis Robot Linear KK Module KK40 KK60 KK86 KK100 KK130

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) H(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
980 1098 811 659 40 90 7 5 29.4 32.3
1180 1298 1011 859 65 90 8 6 34.3 37.2
1380 1498 1211 1059 90 90 9 7 39.2 42.1
1680 1798 1511 1359 90 40 11 9 46.5 49.4



Packing & Delivery
